Intelligent document processing (IDP): what it does, and how to choose a tool

Intelligent document processing, usually shortened to IDP, is software that reads business documents the way a trained clerk does. It looks at a stack of invoices, claims, bills of lading or HR forms, works out what each one is, pulls out the values you need, checks them, and hands over clean data together with a filed copy of the document. A person only sees the items it was unsure of.

This guide explains what happens inside that process, how IDP differs from the OCR and template tools many teams already own, and how to test a tool on your own documents so the result of your trial actually predicts the result in production.

What intelligent document processing is

The useful definition is about the output, not the technology. You put documents in. You get back structured data (the vendor, the claim number, every line of a table) and a good document (split correctly, typed, searchable, named and filed). Anything in between is the tool's problem.

Three things separate IDP from older capture software:

• It handles variety. Different vendors, different form versions, different layouts of the same document type, without someone drawing a template for each one.
• It knows when it is unsure. Each value carries a confidence, and values below the bar you set wait for a person instead of flowing through as quiet mistakes.
• It improves with use. When a person corrects a value, the next document like it should need less help.

The six jobs, step by step

Product names differ, but every IDP tool does the same six jobs in roughly this order. When you compare tools, compare them job by job.

1. 01

   Classify

   Decide what each page is: invoice, purchase order, credit memo, W-9, statement. Classification drives everything after it, because each type has its own fields and rules. A good tool can also say “I do not recognize this” and set the page aside.
2. 02

   Split (separate)

   Find where each document starts and ends in a scanned stack or a long PDF. A three-page invoice followed by a one-page credit memo must become two documents. A wrong split is the most expensive error in the chain, because every field after it is read from the wrong pages.
3. 03

   Extract

   Pull the values: header fields such as numbers, dates, names and totals, and tables such as invoice line items. Values are shaped as they are read, so a date is stored as a date and an amount as money, whatever the print looked like.
4. 04

   Validate

   Check the values. Required fields present, formats correct, line items adding up to the total, values found in your own lists (vendor names, account numbers). Validation is what turns “probably right” into “checked”.
5. 05

   Human review

   Show a person only what needs one, with the reason: missing, low confidence, failed a check. Review should be one screen with the page beside the values, and corrections should teach the tool.
6. 06

   Export

   Deliver the document (usually a searchable PDF, or PDF/A for records) and the data (a data file, an API call or a connector) to where the work continues: a folder, a document system, an accounting system or another application.

Click to enlarge

How IDP differs from OCR and from templates

Buyers often own one of the older approaches already. Here is what each does, and where it runs out.

Templates are not obsolete. If you process one government form that has not changed in ten years, a zone on the page is simple and reliable, and separator sheets are a dependable way to split stacks. The trouble starts when the document mix grows: each new layout is another template to build, and each layout change quietly breaks one. IDP exists for that mix.

Where IDP pays off (and where it does not)

The return comes from removed typing, fewer errors that travel downstream, and faster turnaround. It is strongest where:

• Volume is steady and documents vary. Accounts payable is the classic case: the same fields on hundreds of vendor layouts. Freight paperwork, insurance claims, mortgage files and HR onboarding share the pattern.
• Stacks are mixed. Mailrooms and scanning desks that receive several document types together gain from automatic classification and splitting even before extraction.
• Tables matter. Line items, statements and rate sheets are slow to key by hand and easy to get wrong.
• Downstream systems need clean data. An accounting system, a claims platform or a document library is only as good as the values put into it.

It pays off less when volume is tiny (a few documents a week), when the documents are mostly free-form letters with no fields to pull, or when nobody downstream uses the data. In those cases a good scanner, searchable PDFs and sensible file naming may be all you need; our guide to naming and filing scanned documents automatically covers that.

How to evaluate an IDP tool: a practical checklist

Demos use the vendor's best documents. A trial on your own documents is the only result that predicts production. Before you start, collect a test set: your top senders, a handful of one-off senders, a few crooked or faint scans, your longest multi-page document, and one or two documents that should be rejected. Write down the correct values for the fields you care about so you score against the truth.

• Test on your own documents, not samples

  A trial that only works on the vendor’s sample set proves the samples work. Ask whether you can run your own folder on day one.

• Count the three outcomes that matter

  Right and not flagged (time saved), flagged for review (acceptable), and wrong but not flagged (the expensive one). Drive the last to zero before you trust the first.

• Check splitting and classification on a mixed stack

  Feed one scan of several document types in random order. Count the mis-splits.

• Test line items, not just header fields

  Multi-page tables, wrapped descriptions, subtotal rows. Does it check that the lines add up?

• Judge the review workflow as carefully as extraction

  One screen, the page beside the values, a reason for every flag, click-to-correct, one keystroke to confirm. Your team will live here.

• Watch it learn

  Correct the same sender twice. The third document from that sender should need less help.

• Ask where documents are processed and stored

  On the PC, on your network, or on the provider’s servers? For how long are copies kept?

• Check validation against your own lists

  Can it check a vendor or account against your list, and fill related values from it?

• Check exports end to end

  What files does it produce (searchable PDF, PDF/A, a data file)? Which destinations are built in, and what does it take to reach your system?

• Ask how it is priced

  Per page, per document, per user or per PC? What happens in your heaviest month?

Click to enlarge

Local, cloud or private AI: where processing happens

Where documents are read is a policy decision as much as a technical one. Invoices carry bank details; HR files carry personal data; claims carry medical information. Ademero offers all three models, so here is an even-handed comparison.

CapturePoint 6: document AI on your own PC

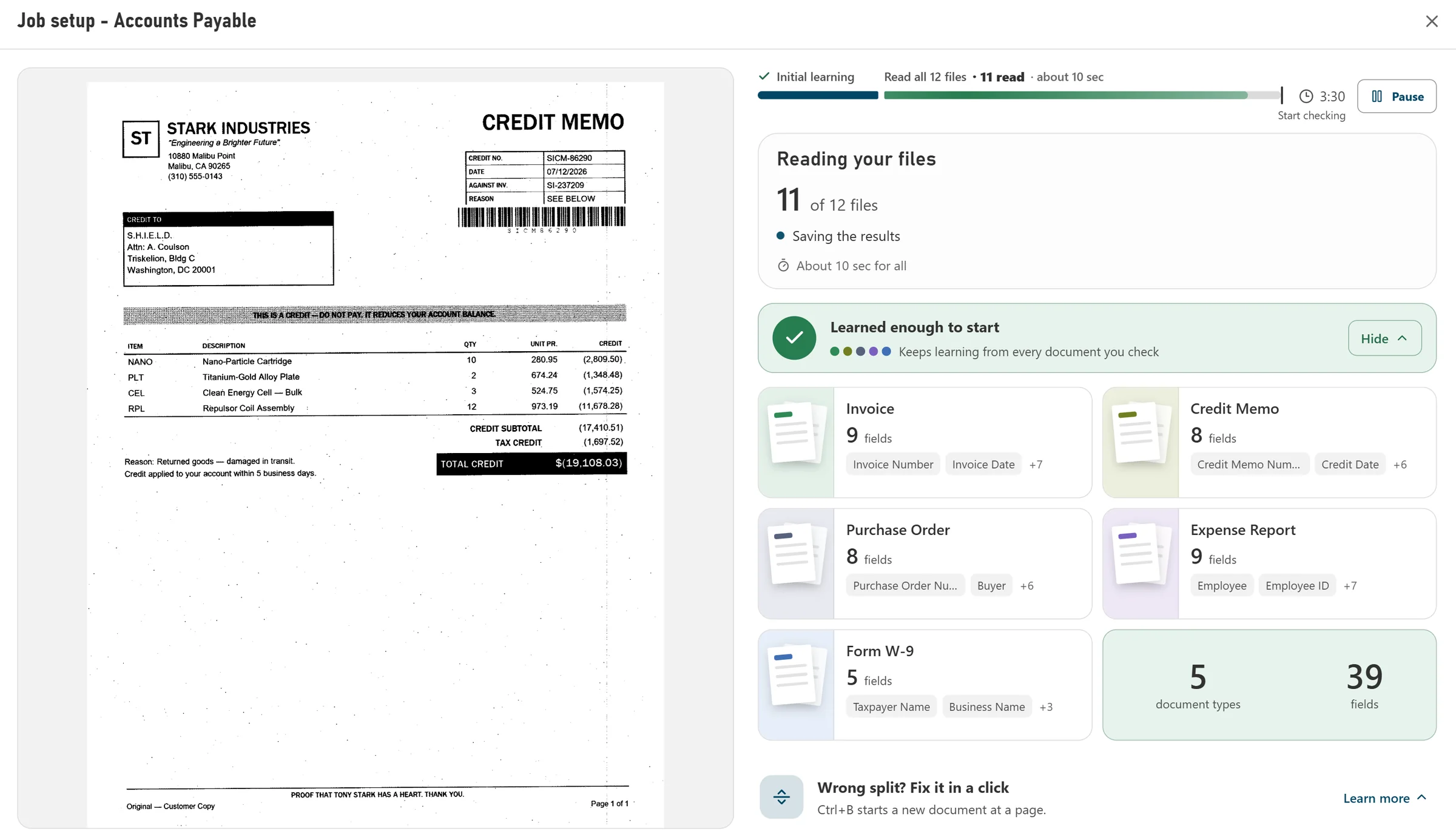

CapturePoint 6 scans with TWAIN scanners or imports PDF, TIFF, JPEG, PNG, BMP and GIF files. It splits stacks, recognizes document types, extracts fields and line-item tables, checks line-item math and shows why anything waits for review. Reading and extraction happen on the PC itself. Point it at a folder of samples and it sets up the job on its own, then learns from every confirmation and correction. It ships with ten ready-made sample jobs, from accounts payable to freight, HR, insurance and mortgage. How-to articles live in the CapturePoint help library.

Paige: the same idea as a cloud service

Paige learns from a few samples, then splits, sorts and reads documents, pulls fields and line items, and delivers the results by download, SFTP or webhook. It runs on Google Cloud, so there is nothing to install. See the Paige help library for connection guides.

Click to enlarge

Cortexa: private AI for your own applications

Cortexa is Ademero's AI on servers you own: OCR for PDFs and images, an OpenAI-compatible API for your developers, and a private chat app, with your data staying on your network. It suits organizations that want to build document AI into their own systems rather than use a finished capture application.

Glossary: the terms you will meet

OCR

Optical character recognition. Turns an image of text into machine-readable text. The first step, not the whole job.

ICR

Intelligent character recognition. OCR aimed at hand-printed characters. Test it separately on your own samples; results vary widely.

Classification

Deciding what type each document is, so the right fields and rules apply.

Separation

Finding where one document ends and the next begins in a stack or a long PDF. Done from content, separator sheets or barcodes.

Extraction

Pulling specific values (fields) and tables (line items) out of a document.

Key-value pair

A label and its value on the page, such as “Invoice No.” and “INV-2401”.

Line items

The rows of a table: description, quantity, unit price, amount.

Confidence

How sure the software is about a value. Useful only if you can set the bar and see what falls below it.

Review threshold

The confidence a value must reach to pass without a person looking. Set per field: strict for totals, looser for notes.

Human in the loop

A person checks what the software flags. Their corrections should improve the next run.

Straight-through processing

A document that goes from intake to export with no human touch, because every value passed its checks.

Zonal OCR

Reading a value from a fixed area of the page. Reliable for one unchanging form; brittle across many layouts.

Searchable PDF

A PDF with the page image plus an invisible text layer, so you can search and copy text.

PDF/A

An archival PDF standard for long-term records. See our searchable PDF vs PDF/A guide.

Webhook

A message a service sends to your system the moment results are ready, so nothing has to poll for them.

SFTP

Secure file transfer. A common way to deliver documents and data files between systems.

For the archive formats, see searchable PDF vs PDF/A. For the scanning side of the process, read our intelligent document capture guide.
